DESCRIPTION

Track bolts also called rail bolts, are used to fasten steel rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.

The parameters oftrack Bolts we produce are presented in the following for your reference:

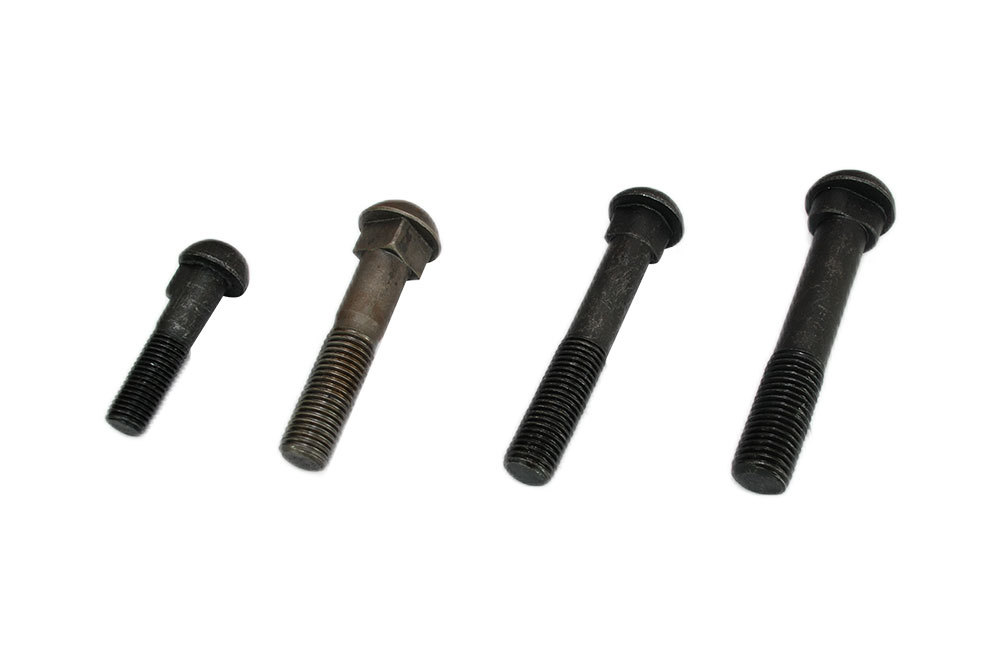

Button head oval neck track bolt		Material: Carbon steel Grade: 8.8 10.9 or SAEJ429 grade 5 or grade 8 Size: Dia. M16-M42 Surface: as requests
Diamond neck track bolt		Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 10.9 Standard: UIC864-2 Surface: plain oiled, oxide black, Zinc, HDG, wax, bitumen, dacromet,etc.
Rail bolt NF F50-008		Material: Q235, 35#, 45#,, 40Cr Grade: 4.6, 5.6, 8.8 10.9 Surface: plain oiled, oxide black, Zinc, HDG
Clip bolt with BSW thread		Material: Q235, 35#, 45#, 40Cr Grade: 4.6, 5.6, 8.8, 10.9 Surface: plain oiled, oxide black, Zinc, HDG
Fish bolt used for rail joints (with railnuts and spring washers)		Material: Q235, 35#, 45#,, 40Cr , C45 Grade: 4.8, 8.8, 10.9 Size: 22×135, 24×135, 24×145 Surface: plain oiled, oxide black, Zinc, HDG Types: BS standard, R54 rail in Indonesia, AS1085.4, Russian standard, AREMA standard, etc.

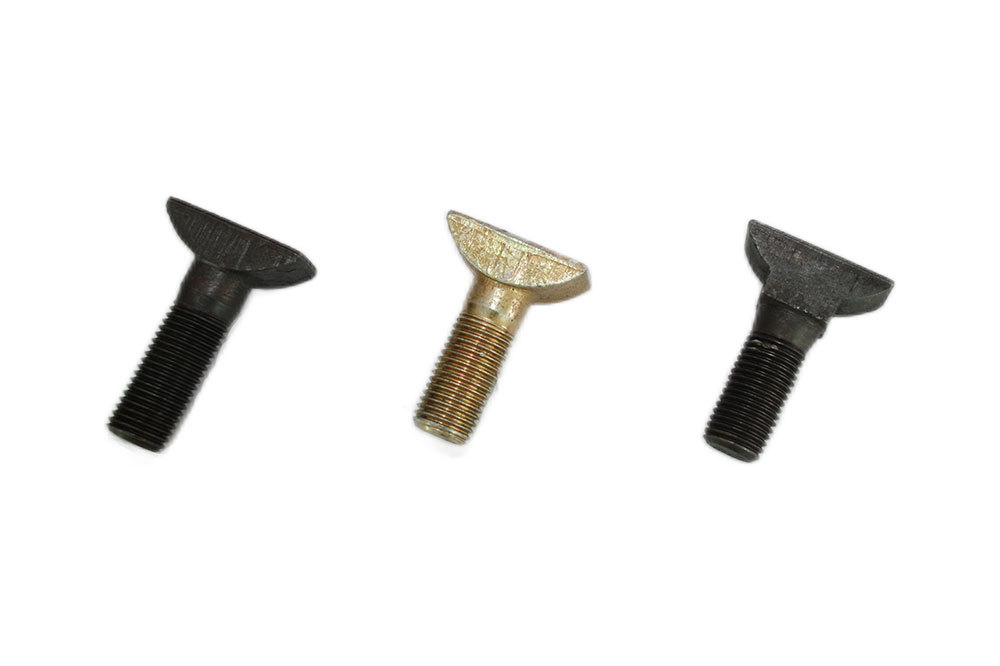

Clip bolt HS26 & HS32		This type of bolt is used to connect base plates and rail clamps together with nuts and washers. Two types of clip bolts are available: with square neck or without neck. Standard: UIC864-2 Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Surface: plain oiled, oxide black, Zinc, HDG
Clamp bolt and inserted bolt for Russia		Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Size: M22 ×75, M22 ×175 Surface: plain oiled, oxide black, Zinc, HDG

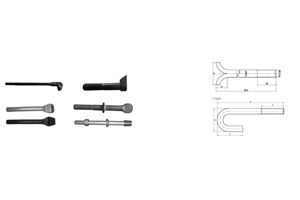

Anchor bolt		We produce rail anchor bolt for concrete sleeper and for crane rail fastening systems. Material: Q235 Grade: 4.6, 5.6, 8.8 Surface: plain oiled, oxide black, Zinc, HDG Type: L type,J type, I type, curve bolt, or the type by customers’ drawings

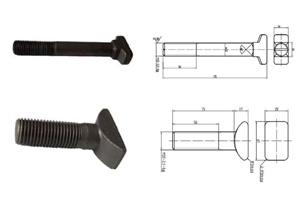

T-bolt		Material: Q235, 45# Grade: 4.6, 5.6, 8.8, 10.6, 12.9 Surface: plain oiled, oxide black, Zinc, HDG
Special bolt		Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Surface: plain oiled, oxide black, Zinc, HDG
Tunnel bolt		Type :available by customers drawings and samples . Surface: plain oiled, oxide black, Zinc, HDG Grade:4.6,4.8,8.8,10.9. Types: Square flange bolts with round thread, special curve bolt, spear bolts with special pitches, etc.
