DESCRIPTION

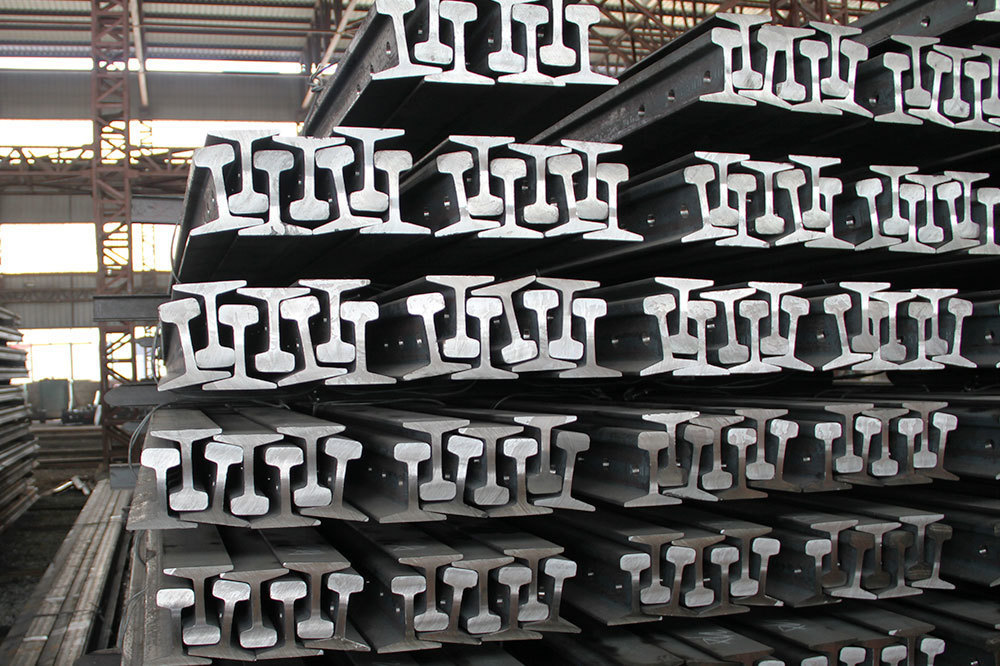

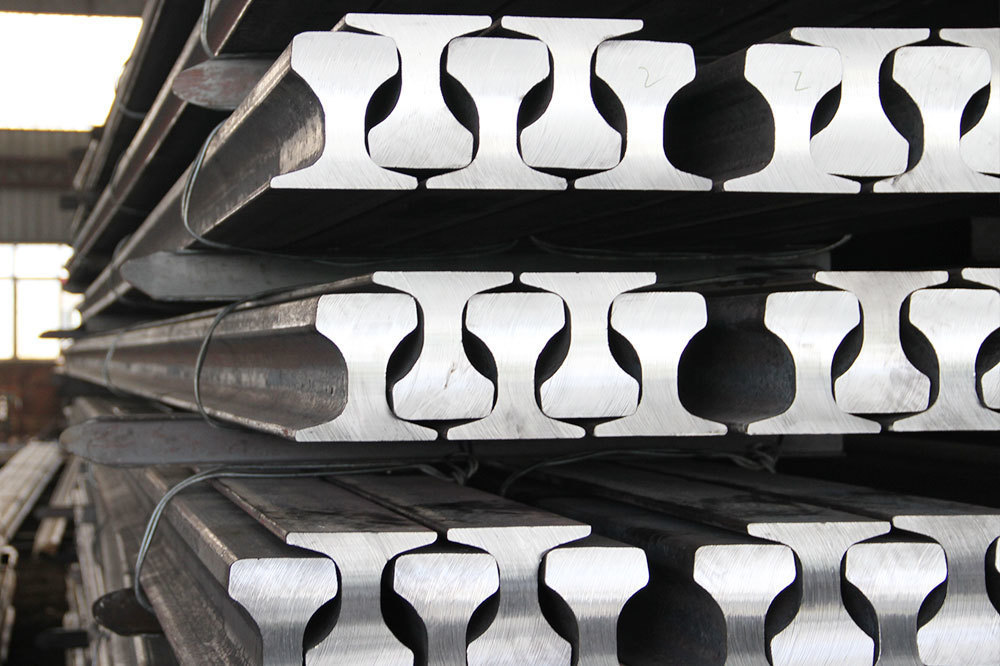

Steel rails
We supply light rail, heavy rail, crane rail according to GB, ASTM, BS, UIC, JIS, EN... standard. We keep inventories for most of the common types, so we can arrange shipments within one week after order is confirmed.

GB rail
We supply chinese Standard light rail according to GB11264-89, some types we have are: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG.
Chinese standard light rail according to YB222-63, such as 8kg, 18kg, 24kg rail.
Chinese Standard heavy rail according to GB2585-2007: GB38KG, GB43KG, GB50KG.
Chinese Standard crane rail: QU70, QU80, QU100, QU120.

Specification as follows:

GB11264-89 Light rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
GB6KG	25.4	50.8	50.8	4.76	5.98	Q235B	6-12
GB9KG	32.1	63.5	63.5	5.9	8.94	Q235B	6-12
GB12KG	38.1	69.85	69.85	7.54	12.2	Q235B/55Q	6-12
GB15KG	42.86	79.37	79.37	8.33	15.2	Q235B/55Q	6-12
GB22KG	50.3	93.66	93.66	10.72	22.3	Q235B/55Q	6-12
GB30KG	60.33	107.95	107.95	12.3	30.1	Q235B/55Q	6-12

YB222-63 Light rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
8kg	25	65	54	7	8.42	Q235B	6-12
18kg	40	90	80	10	18.06	Q235B/55Q	6-12
24kg	51	107	92	10.9	24.46	Q235B/55Q	6-12

GB2585-2007 Heavy rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
GB38KG	68	134	114	13	38.733	50Mn/U71Mn	12.5
GB43KG	70	140	114	14.5	44.653	50Mn/U71Mn	12.5
GB50KG	70	152	132	15.5	51.514	50Mn/U71Mn	12.5

YB/T5055-93 Crane rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
QU70	70	120	120	28	52.8	U71Mn	12
QU80	80	130	130	32	63.69	U71Mn	12
QU100	100	150	150	38	88.96	U71Mn	12
QU120	120	170	170	44	118.1	U71Mn	12

DIN536 Crane rail
We supply DIN536 Crane rail: A55, A65, A75, A100, A120
Specification as follows:

DIN536 Crane rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
A45	45	55	125	24	22.1	900A	6-12
A55	55	65	150	31	31.8	900A	6-12
A65	65	75	175	38	43.1	900A	6-12
A75	75	85	200	45	56.2	900A	6-12
A100	100	95	200	60	74.3	900A	6-12
A120	120	105	220	72	100	900A	6-12

UIC rail
We supply UIC860 standard rail, the types we have are UIC50, UIC54, UIC60.
Specification as follows:

UIC860 Steel rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
UIC50	70	152	125	15	50.46	900A/1100	6-12
UIC54	70	159	140	16	54.43	900A/1100	6-12
UIC60	74.3	172	150	16.5	60.21	900A/1100	6-12

ASCE rail
We supply ASCE, ARA-A and AREMA rail, some types we have are: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90ARA-A, 115RE, 136RE, 175LBS.
Specification as follows:

ASCE, ARA-A, AREMA Standard rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
ASCE25	38.1	69.85	69.85	7.54	12.4	700	6-12
ASCE30	42.86	79.38	79.38	8.33	14.88	700	6-12
ASCE40	47.62	88.9	88.9	9.92	19.84	700	6-12
ASCE60	60.32	107.95	107.95	12.3	29.76	700	12-25
ASCE75	62.71	122.24	122.24	13.49	37.2	900A/1100	12-25
ASCE85	65.09	131.76	131.76	14.29	42.17	900A/1100	12-25
90RA	65.09	142.88	130.18	14.29	44.65	900A/1100	12-25
115RE	69.06	168.28	139.7	15.88	56.9	900A/1100	12-25
136RE	74.61	185.74	152.4	17.46	67.41	900A/1100	12-25
175LBS	109.86	152.4	152.4	38.1	86.8	900A/1100	12-25

BS rail
We supply BS11 Standard steel Rail, types we have are: 50O, 60A, 75A, 75R; 80A, 80R, 85A, 90A, 100A, 113A.
Specification as follows:

BS11-1985 Steel rail
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
50O	52.39	100.01	100.01	10.32	24.833	700	6-18
60A	57.15	114.3	109.54	11.11	30.618	900A	6-18
60R	57.15	114.3	109.54	11.11	29.822	700	6-18
70A	60.32	123.82	111.12	12.3	34.807	900A	8-25
75A	61.91	128.59	114.3	12.7	37.455	900A	8-25
75R	61.91	128.59	122.24	13.1	37.041	900A	8-25
80A	63.5	133.35	117.47	13.1	39.761	900A	8-25
80R	63.5	133.35	127	13.49	39.674	900A	8-25
90A	66.67	142.88	127	13.89	45.099	900A	8-25
100A	69.85	152.4	133.35	15.08	50.185	900A	8-25
113A	69.85	158.75	139.7	20	56.398	900A	8-25

JIS rail
We supply JIS Standard steel Rail, some types we have are: JIS15KG, JIS22KG, JIS30A, JIS37A, JIS50N, CR73, CR100
Specification as follows:

JIS E1103-91/JIS E1101-93
Type	Dimension (mm)				Weight (kg/m)	Material	Length (m)
Type	Head	Height	Bottom	Web	Weight (kg/m)	Material	Length (m)
JIS15KG	42.86	79.37	79.37	8.33	15.2	JIS E Standard	9-10
JIS22KG	50.8	93.66	93.66	10.72	22.3		9-10
JIS30A	60.33	107.95	107.95	12.3	30.1		9-10
JIS37A	62.71	122.24	122.24	13.49	37.2		10-25
JIS50N	65	153	127	15	50.4		10-25
CR73	100	135	140	32	73.3		10-12
CR100	120	150	155	39	100.2		10-12

BS EN14811 Grooved rail
We supply BS EN14811 Grooved rail, types we have are: 59R1,59R2,60R1 and 60R2.
Specification as follows:

Size	Height (mm)	Bottom (mm)	Head A (mm)	Head B (mm)	Channel A (mm)	Channel B (mm)	Web (mm)	Weight (kg/m)
59R1	180	180	113	56	42	15	12	58.97
59R2	180	180	113	55.83	42.52	14.65	12	58.14
60R1	180	180	113	56	36	21	12	60.59
60R2	180	180	113	55.83	36.34	20.83	12	59.75

DIN5901 rail
We supply DIN5901 rail, types we have are: S18,S20,S24,S30,S33,S41,S49.
Specification as follows:

Section number	Moment of inertia in cm⁴		Section coefficient					Unit mass length kg/m
Section number	Ix	Iy	ex(head), in mm	Wx(head), in cm³	ex(foot), in mm	Wx(foot), in cm³	Wy, In cm³	Unit mass length kg/m
S10	85.7	14	34.98	24.3	35.02	24.3	4.8	10
S14	154	27.4	41.81	36.4	38.19	39.9	7.8	14
S18	278	47.4	48.4	56	44.6	60.8	11.6	18.3
S20	346	52.9	52.07	66	47.93	71.6	12.9	19.8
S30	606	152	56.02	108.4	51.98	116.9	28	30.03
S33	1040	151	66.69	155.9	67.31	154.5	29	33.47
S41R10	1382	265.5	69.35	199.3	68.65	201.3	42.48	41.38
S41R14	1367	262.2	69.8	195.8	68.02	200.4	41.95	40.95
S49	1819	320	75.61	240.2	73.39	247.5	51	49.43
