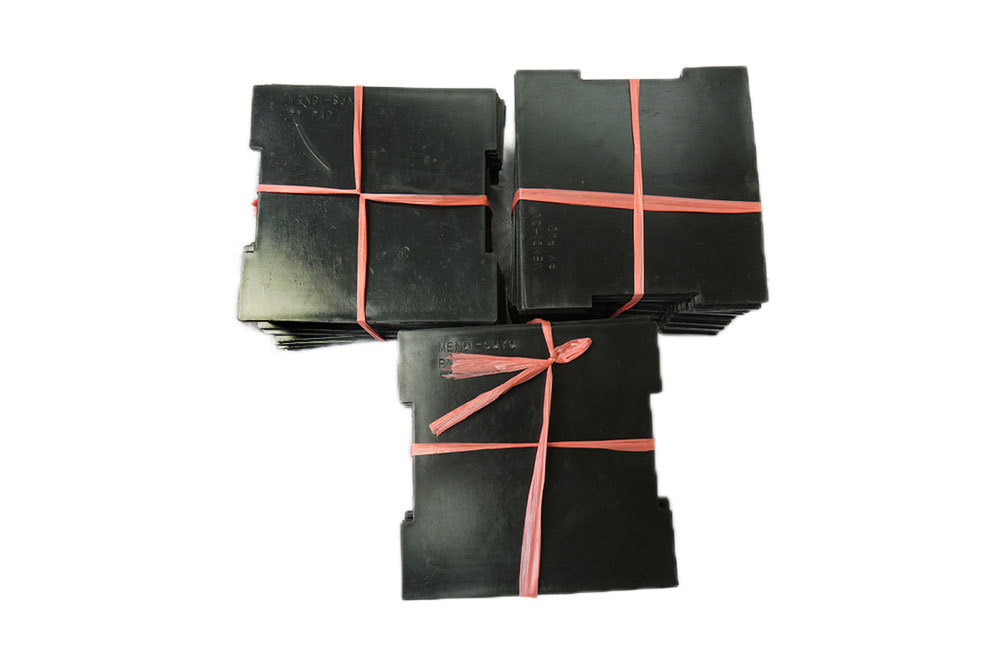

Rail Pad

+86 21 2092 2552

rk@rkrail.com

Inquiry

DESCRIPTION

Rail pads are placed between rails and sleepers to protect the tops of the sleepers from wear and impact. The rail pads are kept in close contact with the rails. Generally, the rail pads are made of rubber or plastic insulators, which act as a buffer to suppress the impact of passing train vibrations on the wear of rails and sleepers.

Rail pads are critical to reducing shock and vibration in the rail system, so materials must be wear-resistant.

The rail pads are placed under the rails to share the load on a larger surface, eliminating load concentration and resulting fatigue stresses.

It can absorb the vibration and noise caused by uneven contact surfaces between rails and sleepers.

We can provide the rail pads in material of HDPE, EVA, Rubber and TPU. Those rail pad could be used for E type rail fastening system, SKL rail fastening system(W14 rail fastening system,W21 rail fastening system, W30 rail fastening system , etc.), fist rail fastening system, etc.
