DESCRIPTION

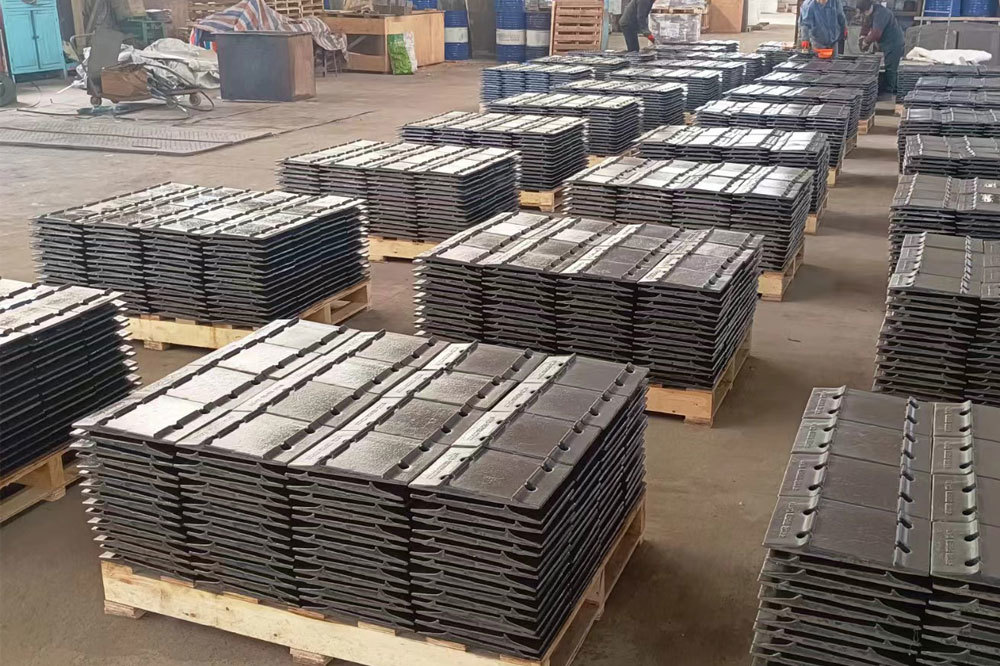

A tie plate, base plate or sole plate is a steel plate used on rail tracks between the rail and the crossties. The tie plate increases bearing area and holds the rail to correct gauge. They are fastened to wooden sleeper by means of spikes or bolts through holes in the plate. We supply any type of base plate suitable for various rail sections. The base plate can be casted, forged or rolled.

1. Casted rail tie pate
The normal material: Cast Steel ZG35/ZG45, Cast iron QT500-7/QT450-10

Steel No.	Chemical Composition (%)					Mechanical Properties
	C	Si	Mn	≤S	≤P	Yield Strength	Tensile Strength	Elongation
	C	Si	Mn	≤S	≤P	Min (Mpa)	Min (Mpa)	Min(%)
Casting steel ZG35	≤0.40	≤0.5	≤0.9	0.04	0.04	270	500	18
Casting steel ZG45	≤0.5	≤0.6	≤0.9	0.04	0.04	310	570	15
Casting iron QT450-10	3.4-3.9	2.7-3.0	0.2-0.5	0.07	0.03	310	450	10
Casting iron QT500-7	3.6-3.8	2.5-2.9	≤0.6	0.08	0.025	320	500	7

2. Forged tie plate
Normal material: Q235, 35#(1035) or 45#(1045)
We have produce forged tie plate for 65lbs, 85lbs, 90ARA, 100-8 , 115RE and 136RE rail.

3. Rolled tie plate
Normal material: Q235, 35#(1035) or 45#(1045)
